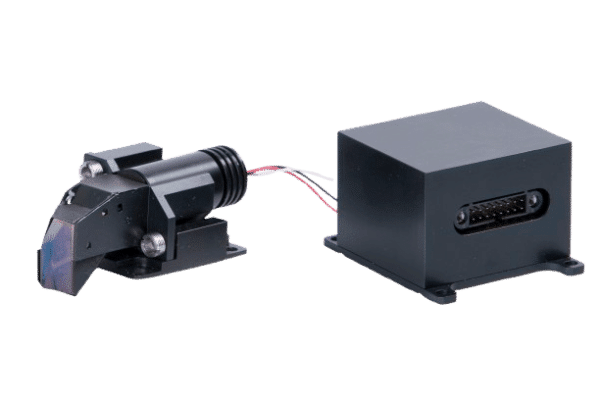

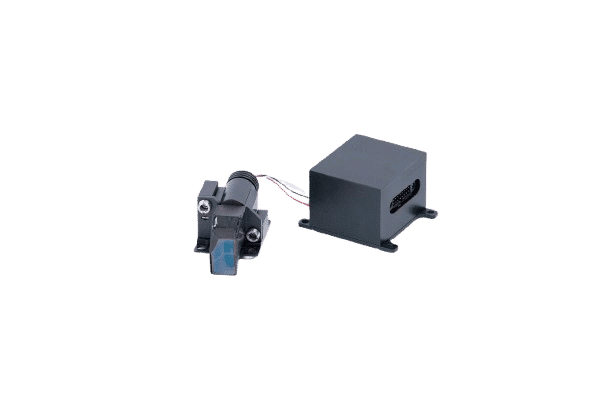

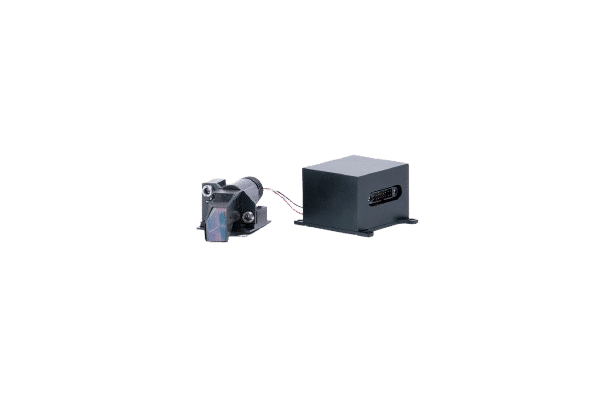

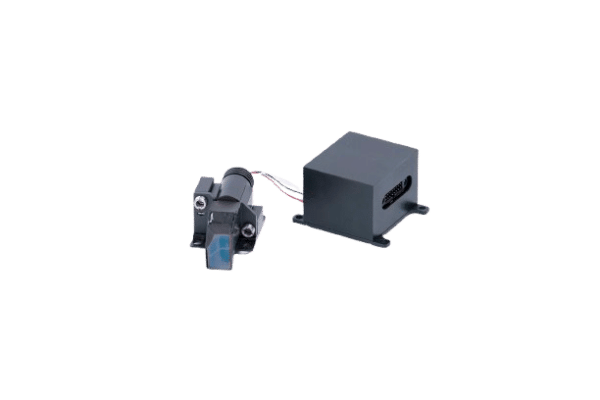

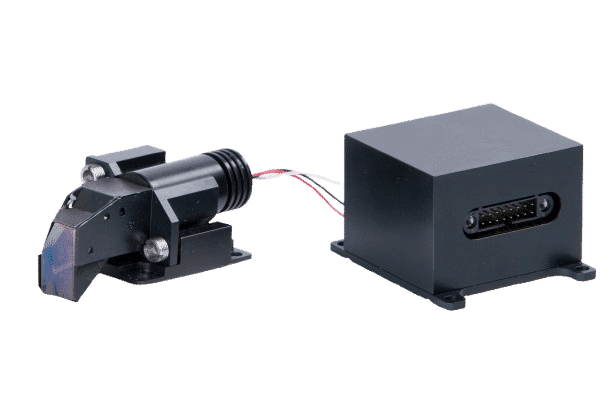

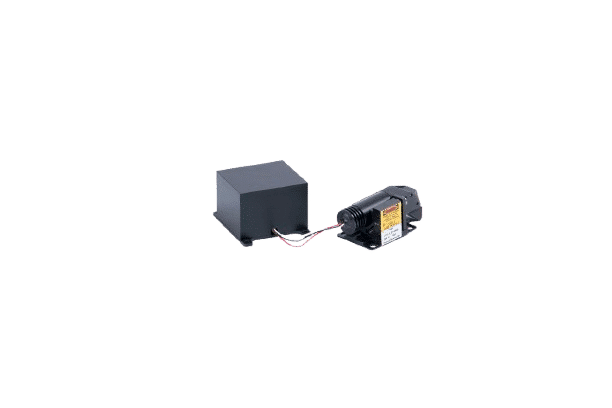

Tiny - MK I (Cat. #201418000)
Compact long-range NIR laser pointer.
This compact size laser provides the system designer the capability of integrating a powerful laser into the crowded space of the gyro-stabilized gimbals system. For small UAVs where the sizes do counts, a new design is provided, in which the diode is encapsulated in a sealed aluminum housing. This housing will be mounted inside the gimbals system, with a boresight mechanism and the optics.
Since the weight on the gimbals is a significant problem, we split the system into the laser unit (laser and optics) and laser driver; therefore most of the weight can be located where ever the system designer will decide.
| Parameter | Value |
|---|---|
| Application: | Long range pointer |
| Operational Mode: | CW, Flash |
| CW, Flash | 810nm, 830nm, 860nm |
| Optical Output Power | 0.7 ÷ 1.5W |
| Pulse Rate | up to 5Hz |
| Beam Divergence (70% of energy) | 1mRad |
| Bore Sight | 2.1ᵒ tilt and 1.4ᵒ pan |
| Operational Voltage | 28VDC |
| Dimensions – Laser module | (H)30 x (L)60 x (W)30mm |
| Dimensions – Driver module | (H)45 x (L)40 x (W)35mm |
| Weight | Laser module: 85gr Driver box: 45gr |
