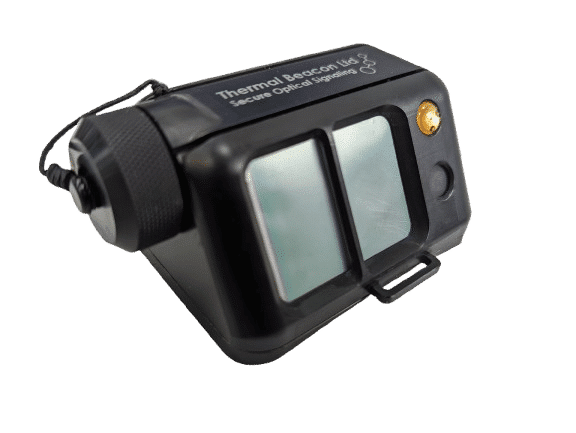

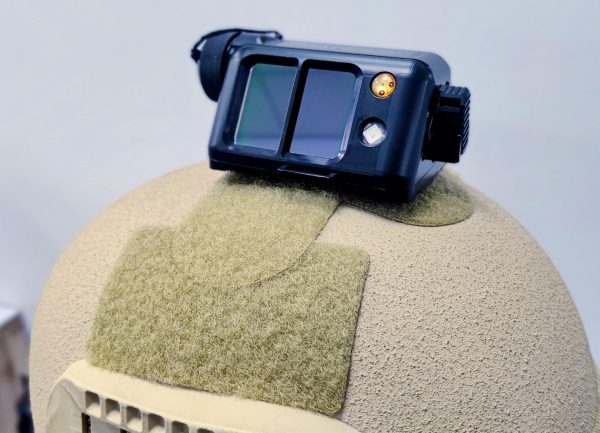

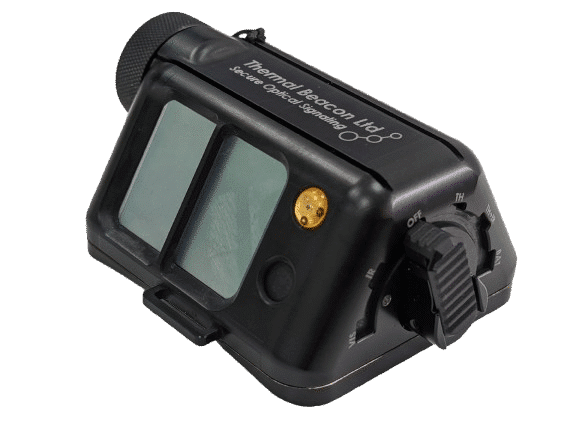

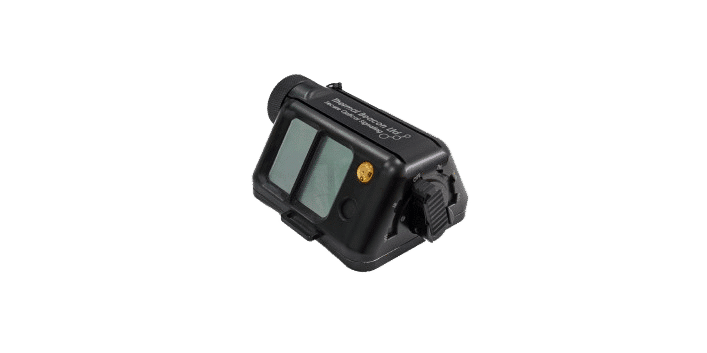

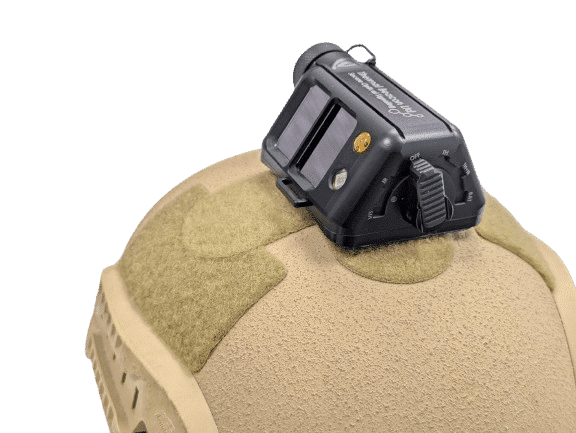

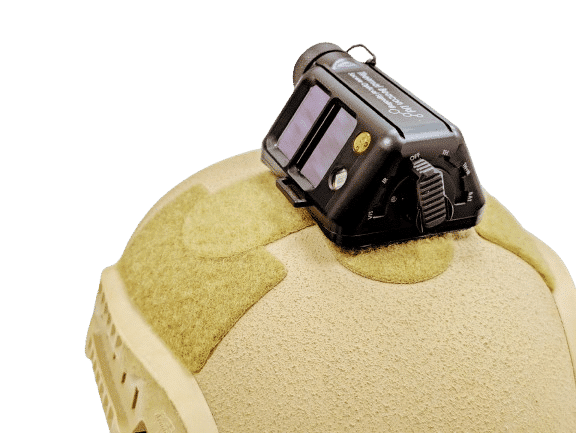

Orion, a multi-spectral, medium-range helmet-mounted beacon.
This device incorporates an innovative and unique infrared emitter, radiating a powerful infrared signal providing a substantial thermal Signature detectable by LWIR & MWIR cameras.
The beacon also radiates in the NIR and VIS (green) /SWIR wavelengths.
For complete compatibility support the device can operate with 1x18650 or 2xCR123 batteries.
The product offers haptic feedback for different modes and low battery indication without visual check.
- Multi-spectral (NIR, SWIR, MWIR and LWIR)
- Multi-kilometers detectability
- Water-Proof IP67
- SWaP optimized
| Parameter | Value |
|---|---|
| Detection Range: | |
| At 3-5μm using InSb Detector & 250mm lens | 5km |
| At 3-5μm using Airborne Optics (Litening) | >15km |
| At 8-12μm using a microbolometer camera & 100mm lens | Up to 2km |
| Using IR light intensifier | 10km |
| Visible LED (Opional): | 2km |
| SWIR LED (Optional): Using SXGA InGaAs camera at 0.25⁰ FOV |
>3km |
| Operation Voltage | 18650 or 2 CR123 batteries |
| Operational Time | 4 hours (18650 Battery. Thermal Mode @0.5Hz) |
| Radiation divergence | Yaw: 120° each side Pitch:120° each side |
| Repetition Rate | 0.5-2.5Hz, 1 predetermined frequencies |
| Dimensions | H/L/W: 43.9 x 100.2 x 77mm |
| Weight (without batteries & accessories): | 190gr |
| Operating Temperature | -20Cᵒ up to +55Cᵒ |
| Storage Temperature | -40Cᵒ up to +71Cᵒ |
