N-Venom

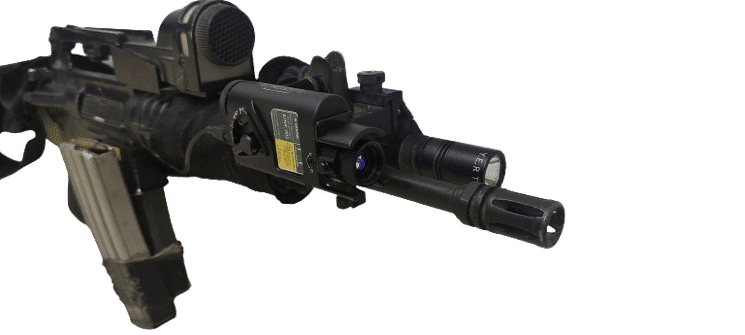

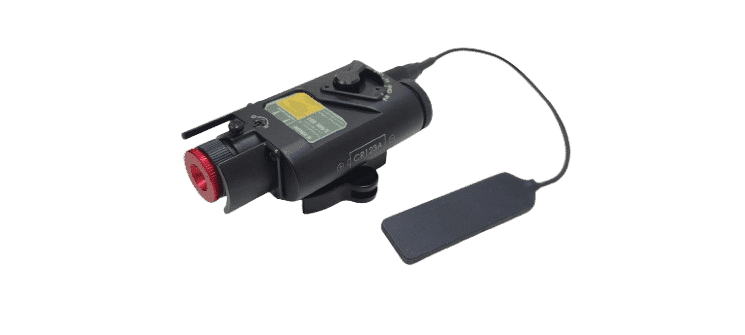

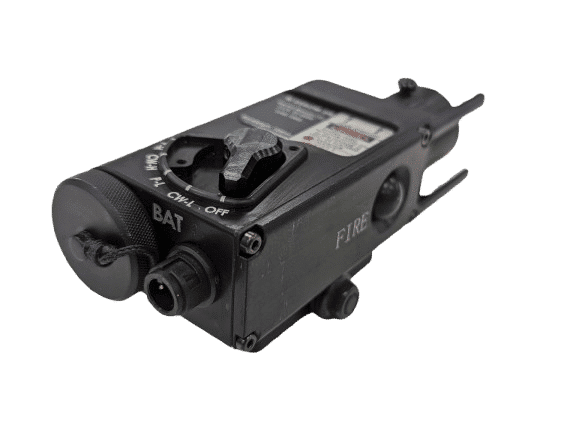

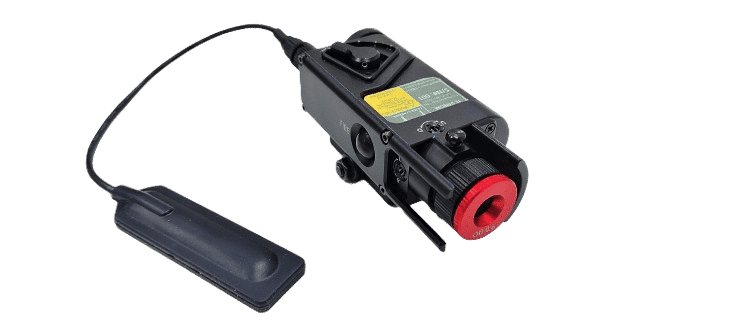

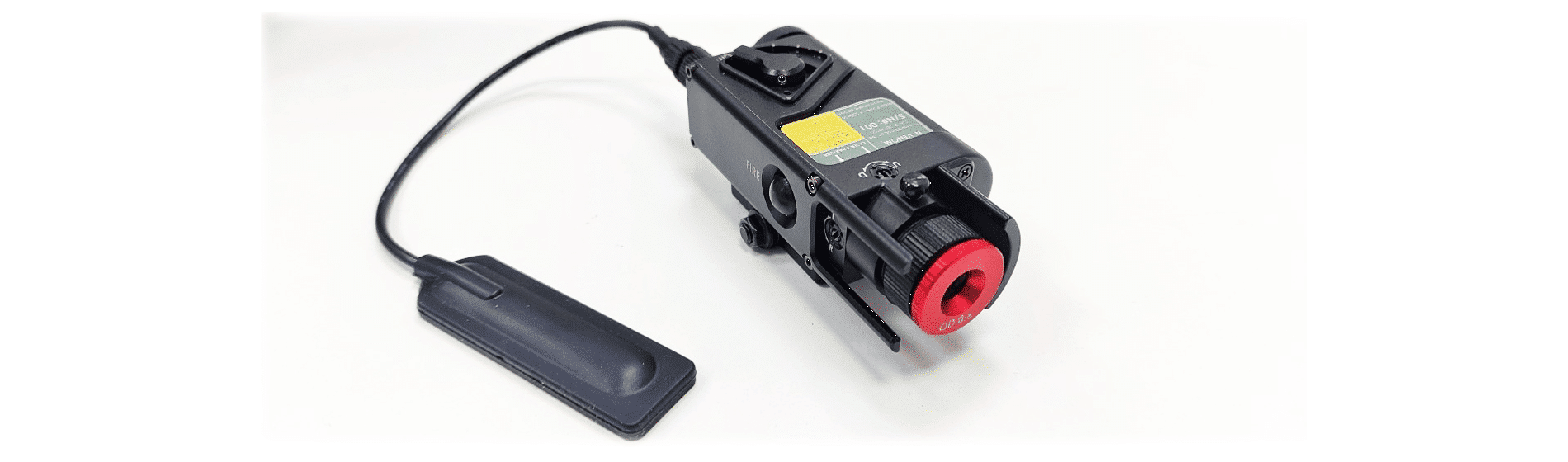

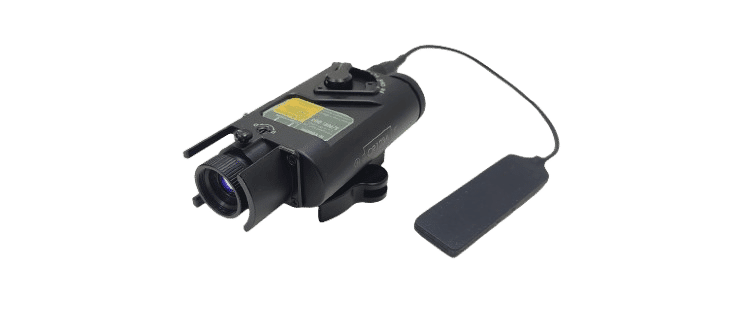

Weapon mounted infrared laser illuminator and pointer for very long ranges.
Incorporate variable optics for different combat conditions.
| Parameter | Value |
|---|---|
| Wavelengths | 852nm / 1470nm (Other wavelengths are available) |
| Output Power | Up to 190mW. Depends on wavelength |
| Beam Divergence (1/e) | From <0.5mRad Up to 10⁰ |
| Boresight range | ±2ᵒ Pan ±2ᵒ Tilt |
| Operational Mode | CW, Flash – 1.5Hz |
| Power Control | High – 190mW Low – <2mW (can be customized) Eye-safe with filter attachment - Optional |
| Range/Visibility*
* Range may vary depending on light conditions |
High – 9km Low – 1.7km |
| Battery | 3V – 1 CR123 battery For 2 hours of operation |
| Operation | • Integrated Push Button • Remote operation with a pressure switch (0.4 m cable) |
| Dimension | As per drawing |
| Weight | 185gr |
| Construction | Aircraft aluminum. Black anodized, Stainless-steel hardware |
| Attachments | Variable mounting options available for different types of weapons |
| Operating Temperature | -25Cᵒ up to +55Cᵒ |
| Storage Temperature | -40Cᵒ up to +71Cᵒ |
