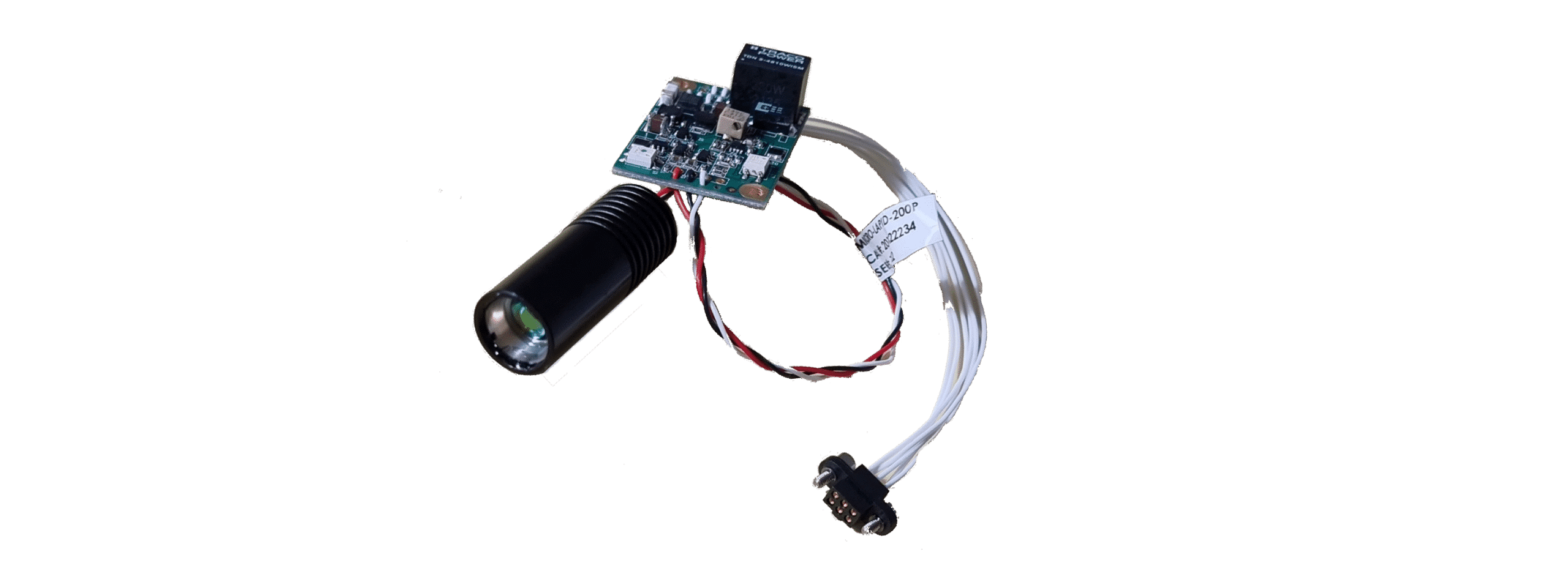

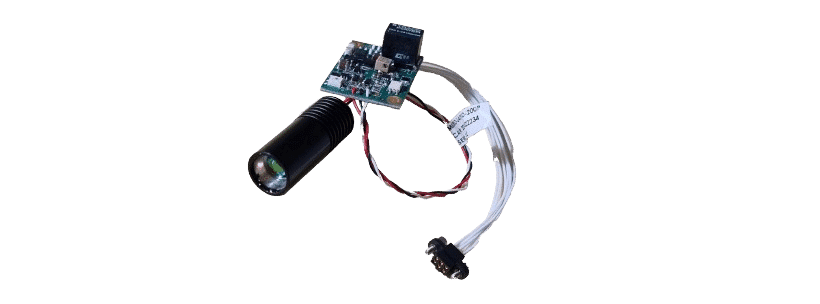

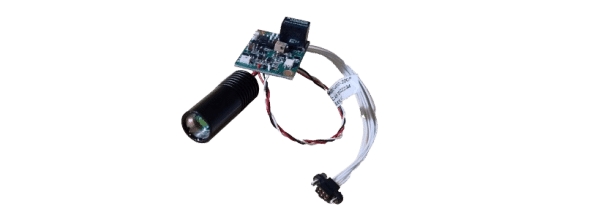

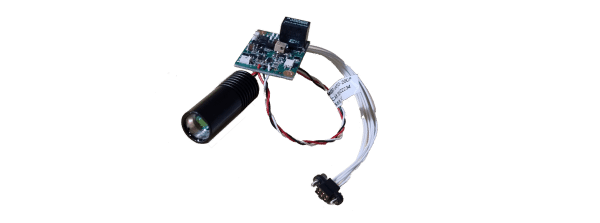

Micro Lapid- 200P
This near-infrared laser pointer is a long-range light aiming weapon used to point out targets at ranges of up to 10 km at a wavelength of 850nm (NEAR IR).
Its extremely miniature size provides the system designer the capability of integrating a very powerful laser into the crowded space of the gyro-stabilized gimbals system.
| Parameter | Value |
|---|---|
| Application: | Medium / short range pointer |
| Operational Mode: | CW, Flash |
| Wave Length: | 850nm |
| Optical Output Power | 190mW |
| Pulse Rate | up to 5Hz |
| Beam Divergence (70% of energy) | <0.5mRad |
| Operational Voltage | 28VDC |
| Dimensions | Optics: (Ø)15 x (L)40.1 PCB: (L)42 x (W)28mm |
| Weight | 28.2gr |
